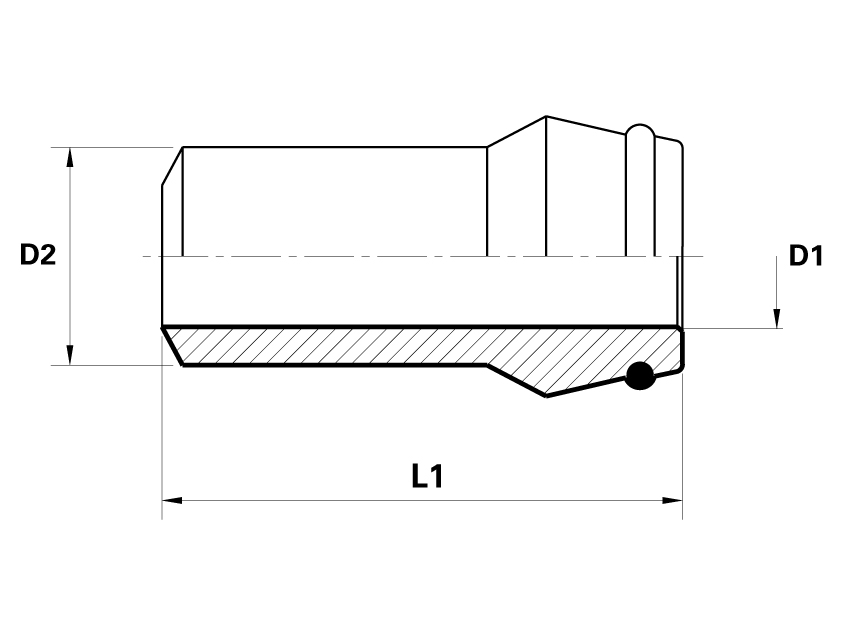

OGIVA A SALDARE CON O-RING DIN 3865 A - ISO 8434-4
DIN 3865 A - ISO 8434-4
| Codice | T (mm) | S | D1 (mm) | D2 (mm) | L1 (mm) | PN (bar) | Serie |
| TLS06W | 6 | 1,75 | 2,5 | 6,0 | 31,0 | 630 | L / S |
| TLS08W | 8 | 2,00 | 4,0 | 8,0 | 31,0 | 630 | L / S |
| TLS10W | 10 | 1,50 | 7,0 | 10,0 | 32,5 | 315 | L / S |
| TLS10WX2 | 10 | 2,00 | 6,0 | 10,0 | 32,5 | 400 | L / S |
| TLS12W | 12 | 1,50 | 9,0 | 12,0 | 32,5 | 315 | L / S |
| TLS12WX2 | 12 | 2,00 | 8,0 | 12,0 | 32,5 | 400 | L / S |
| TLS12W2.5 | 12 | 2,50 | 7,0 | 12,0 | 32,5 | 630 | L / S |
| TL15W | 15 | 2,50 | 10,0 | 15,0 | 34,0 | 315 | L |
| TL18W | 18 | 2,50 | 13,0 | 18,0 | 35,5 | 315 | L |
| TL22W | 22 | 2,50 | 17,0 | 22,0 | 38,5 | 160 | L |
| TL28W | 28 | 2,50 | 23,0 | 28,0 | 41,5 | 160 | L |
| TL35W | 35 | 3,00 | 29,0 | 35,0 | 47,5 | 160 | L |
| TL42W | 42 | 3,00 | 36,0 | 42,0 | 47,5 | 160 | L |
| TS14W | 14 | 3,00 | 8,0 | 14,0 | 38,5 | 400 | S |
| TS16W | 16 | 2,00 | 12,0 | 16,0 | 39,0 | 250 | S |
| TS16WX2.5 | 16 | 2,50 | 11,0 | 16,0 | 39,0 | 315 | S |
| TS16WX3 | 16 | 3,00 | 10,0 | 16,0 | 39,0 | 400 | S |
| TS20W | 20 | 2,50 | 15,0 | 20,0 | 45,0 | 250 | S |
| TS20WX3 | 20 | 3,00 | 14,0 | 20,0 | 45,0 | 315 | S |
| TS20WX4 | 20 | 4,00 | 12,0 | 20,0 | 45,0 | 400 | S |
| TS25W | 25 | 3,00 | 19,0 | 25,0 | 49,5 | 250 | S |
| TS25WX4 | 25 | 4,00 | 17,0 | 25,0 | 49,5 | 315 | S |
| TS25WX5 | 25 | 5,00 | 15,0 | 25,0 | 49,5 | 400 | S |
| TS30W | 30 | 3,00 | 24,0 | 30,0 | 52,0 | 160 | S |
| TS30WX4 | 30 | 4,00 | 22,0 | 30,0 | 52,0 | 250 | S |
| TS30WX5 | 30 | 5,00 | 20,0 | 30,0 | 52,0 | 315 | S |
| TS30WX6 | 30 | 6,00 | 18,0 | 30,0 | 52,0 | 315 | S |
| TS38W | 38 | 3,00 | 32,0 | 38,0 | 56,5 | 160 | S |
| TS38WX5 | 38 | 5,00 | 28,0 | 38,0 | 56,5 | 250 | S |
| TS38WX6 | 38 | 6,00 | 26,0 | 38,0 | 56,5 | 315 | S |
| TS38WX8 | 38 | 8,00 | 22,0 | 38,0 | 56,5 | 315 | S |
NOTA BENE: per i prodotti tubi ogni unità ordinata corrisponde a 1 mt
